1.46 Inch Round IPS TFT LCD Display with 360x360 Resolution and ST77916 Driver

Name: 146 Inch Round IPS TFT LCD Display with 360x360 Resolution and ST77916 Driver
Brand: Enrich
Price: 1.50 USD

Quality 1.46 Inch Round IPS TFT LCD Display with 360x360 Resolution and ST77916 Driver for sale

Brand Name : Enrich

Model Number : ENH-TV0146A003

Certification : ISO9001,Rosh

Place of Origin : China

Price : $1.50-$10.00

Payment Terms : T/T

Delivery Time : 20-25 work days

Material : TFT

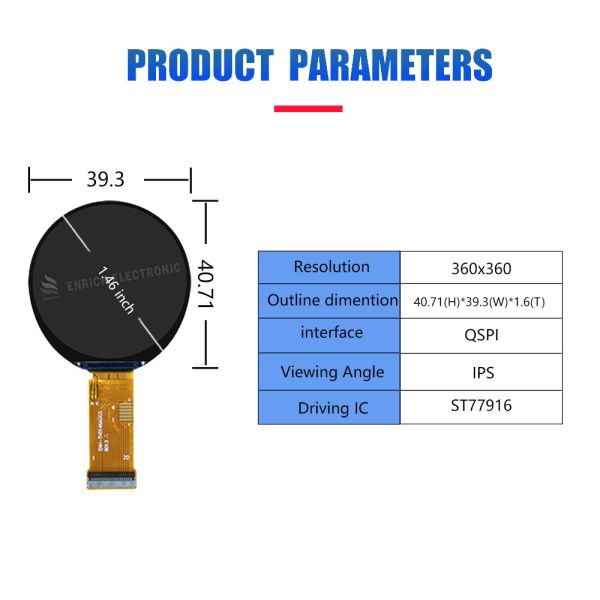

LCD Size : 39.3x40.71x1.6

Interface : QSPI

Viewing Angle : IPS

Driving IC : ST77916

Resolution : 360x360

Contact Now

1.46 Inch Round IPS TFT LCD Display 360x360 Resolution 262K Colors ST77916 Driver

1.46 Inch Round IPS TFT LCD Display with 360x360 Resolution and ST77916 Driver

Product Specifications

LCD Size: 1.46 Inch
Resolution: 360x360
Viewing Angle: IPS
Driving IC: ST77916
Interface: QSPI

Application Fields

Portable Medical Devices: Blood glucose monitors, portable ECG monitors, digital thermometers, enabling real-time health data reading.
Industrial Control Equipment: Handheld terminals, sensor instruments, PLC controller interfaces, suitable for compact installations.
Wearables & IoT Devices: Smartwatches, fitness trackers, smart home control panels, balancing display and portability.
Consumer Electronics: Mini game consoles, portable media players, e-readers, enhancing on-the-go experiences.
Automotive Electronics: Dashcam displays for rearview mirrors, portable GPS navigators, saving cabin space.

Key Advantages

Space Efficiency

Low Power Consumption

Cost-Effectiveness

Balanced Display Performance

Environmental Robustness

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.

Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.

LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.

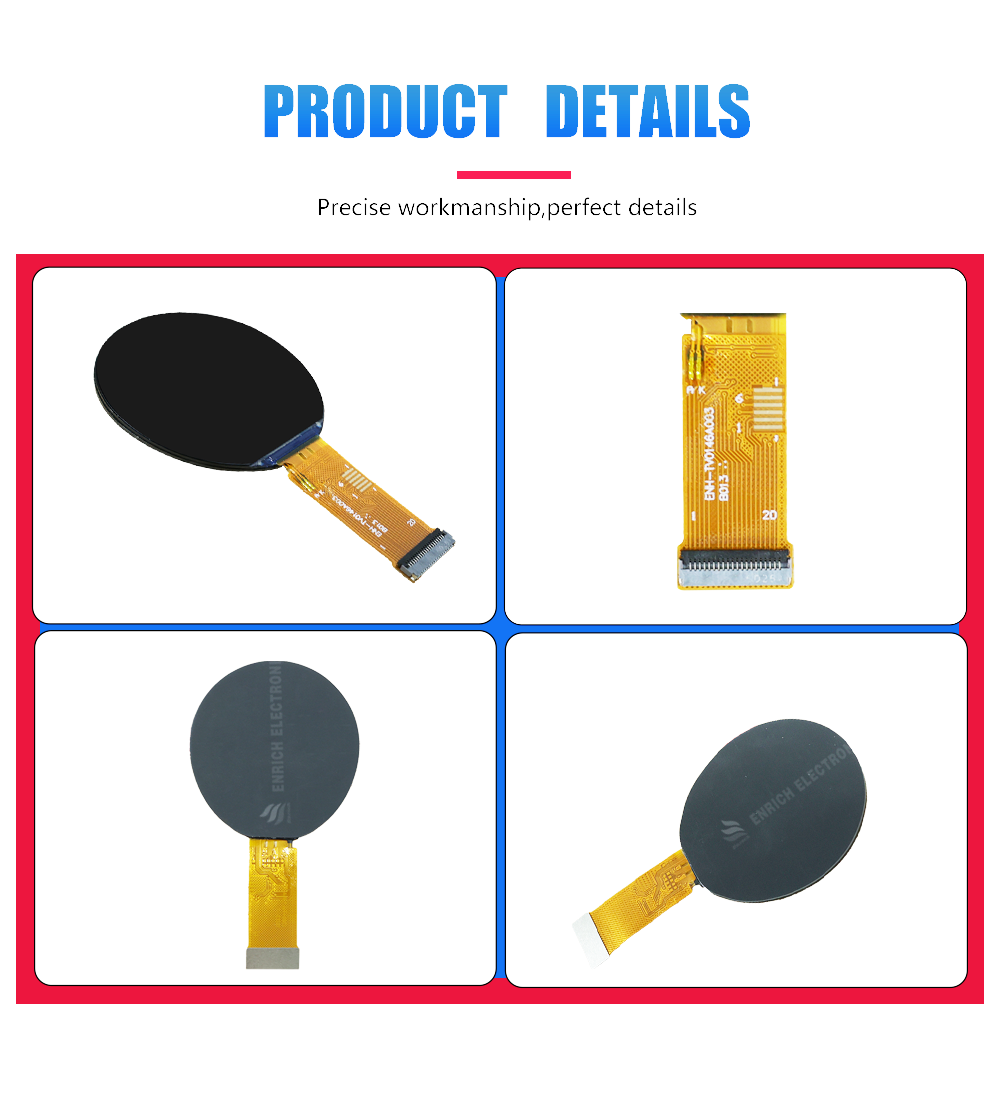

1.46 Inch Round IPS TFT LCD Display with 360x360 Resolution and ST77916 Driver Images
